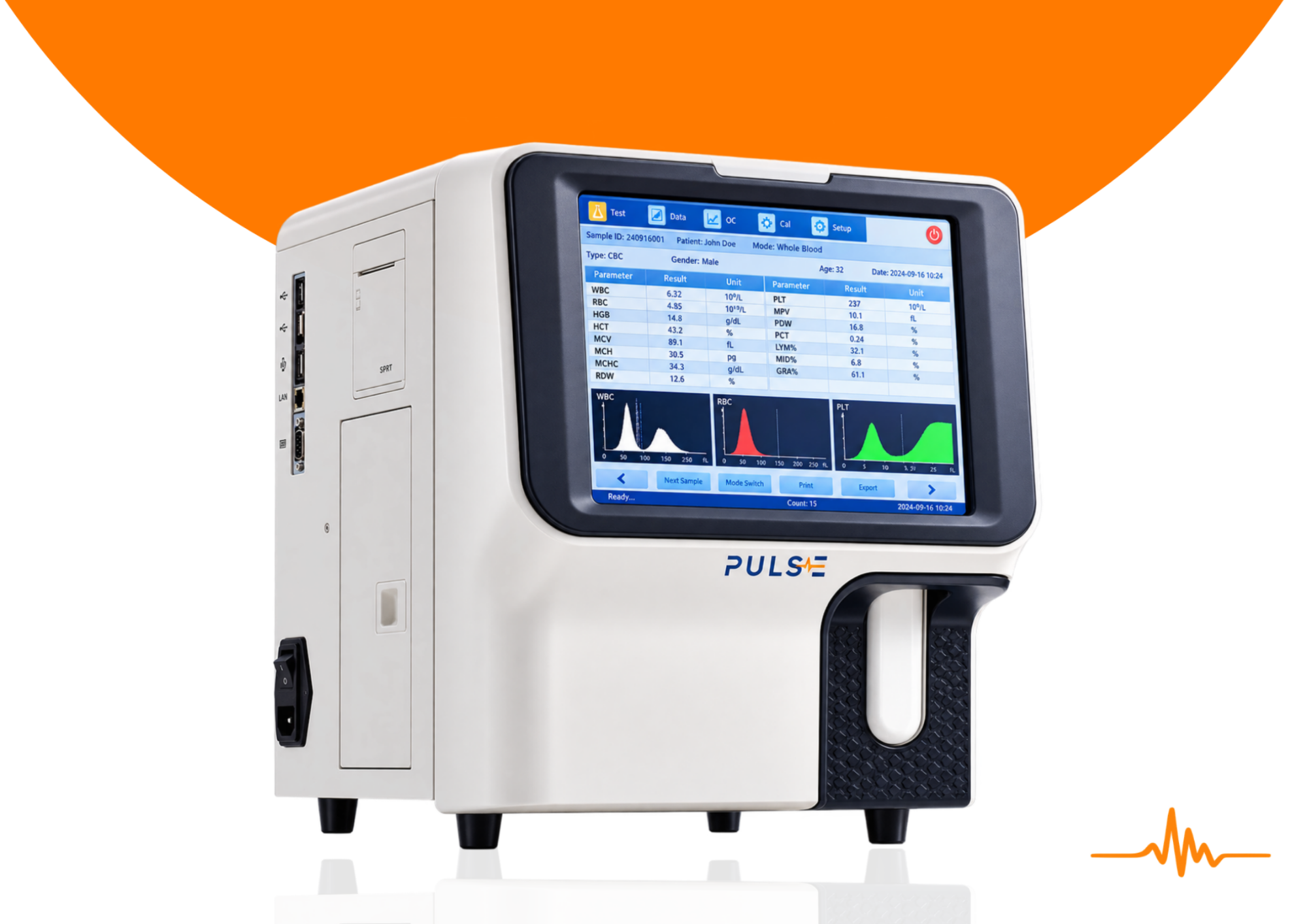

HOME › IVD › Pulse ZT370 3-Part-Diff Hematology Analyzer
HEMATOLOGY ANALYZER | IVD
Never compromise thirst for speed, faster to be first. Compact double-chamber hematology analyzer delivering 72 tests per hour with a simple 2-reagent system.
| Parameters | WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW-SD, PDW-CV, PCT, P-LCR, P-LCC — 3-part differentiation of WBC, 22 parameters and 3 histograms |
| Principle of Operation | WBC/RBC/PLT: electrical impedance; HGB: photoelectric colorimetry |
| Aspiration Volume | Whole blood 8.5µL, pre-diluted 20µL |
| Aperture Diameter | WBC 100µm, RBC/PLT 68µm |
| Throughput | 72 tests/hour |
| Data Storage | Up to 1,000,000 sample results with histograms |
| Dilution Ratio | WBC/HGB — 1:232 (whole blood), 1:400 (capillary); RBC/PLT — 1:40000 (whole blood), 1:45000 (capillary) |
| Display | 10.4-inch colour LCD, resolution 800×600, touchscreen |
| Control & Calibration | L-J, X, X-R, X-B four control modes, manual and auto-calibration |
| Input / Output | RS232, 6× USB (mouse, keyboard, HP printer, barcode reader, flash disk), internal 57mm thermal printer |
| Power | AC 100–240V, 50/60Hz, 180VA |
| Dimensions & Weight | 380mm (L) × 305mm (W) × 395mm (H), about 18kg |
Got Questions?
It is a compact 3-part-diff hematology analyzer for routine blood count testing, built with a double-chamber design for faster throughput.
Up to 72 tests per hour, using only 2 reagents, diluent and lyse, with an optional RFID reagent system.
Yes, it is ISO 13485 certified.
Yes. This is used in both small diagnostic clinics and large hospital laboratories across India.
Message us on WhatsApp at +91 90711 01108, or download the brochure on this page for full specifications.
