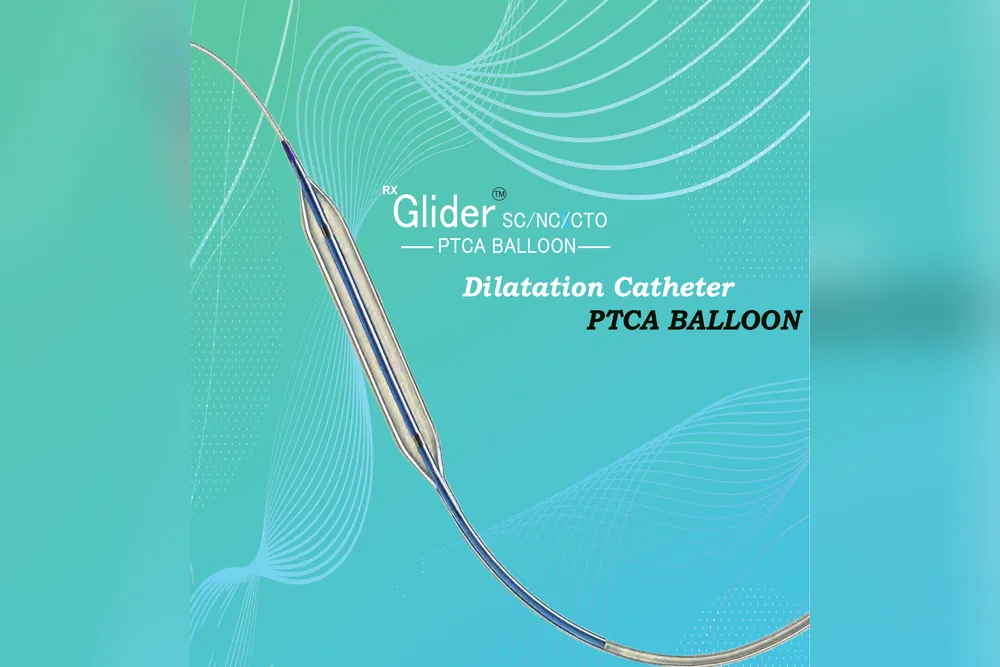

HOME › Cardiac Care › Pulse Glider PTCA Balloon (SC, NC, CTO)
PTCA Balloon | Dilatation Catheter
Rapid exchange PTCA balloon dilatation catheter in three versions: semi-compliant (SC) for opening narrowed arteries, non-compliant (NC) for high-pressure stent expansion, and CTO for very tight and total blockages.
| Product type | PTCA balloon dilatation catheter |
| Balloon material | Nylon (polyamide) |
| Balloon types | Semi-compliant (SC), non-compliant (NC), CTO |
| SC and NC diameters | 1.50, 2.00, 2.50, 2.75, 3.00, 3.50, 4.00 mm |
| SC and NC lengths | 6, 10, 12, 15, 20, 25, 30, 35, 40 mm |
| CTO diameters | 1.00, 1.10, 1.25 mm |
| CTO lengths | 5, 10, 12, 15 mm |
| Catheter length | 142 ± 2 cm |
| Rapid exchange length | 25 cm (250 mm) |
| Tip entry profile | 0.018 inch (0.45 mm) |
| Crossing profile | 0.60 mm minimum, 0.84 mm maximum |
| Proximal shaft diameter | 1.97 F |
| Distal shaft diameter | 2.56 F |
| Proximal shaft inner diameter | 0.480 ± 0.01 mm |
| Nominal pressure | 6 atm (SC, CTO); 10 atm (NC) |
| Rated burst pressure | 14 atm (SC); 18 atm (NC, CTO) |
| Minimum guiding catheter | 5 F (0.056 inch) |
| Maximum guidewire | 0.014 inch (0.36 mm) |
| Inflation time | Not more than 10 seconds |
| Deflation time | Under 20 seconds on average |
| Certification | ISO 13485:2016, CE (notified body 1035) |
| Version | Compliance | Pressures | Typical use |
|---|---|---|---|
| Glider SC | Semi-compliant: grows a little with pressure | Nominal 6 atm, rated burst 14 atm | Pre-dilation: opening a narrowed artery before a stent |
| Glider NC | Non-compliant: holds its size, under 5% growth at rated burst | Nominal 10 atm, rated burst 18 atm | Post-dilation: expanding a stent fully against the artery wall |
| Glider CTO | Small 1.00–1.25 mm balloon | Nominal 6 atm, rated burst 18 atm | Crossing chronic total occlusions and very tight lesions |
Order codes follow the pattern GS + diameter + length (for example, GS30015 is 3.00 mm × 15 mm). Green is the nominal pressure; red is the rated burst pressure.
| Length | 1.50 mm | 2.00 mm | 2.50 mm | 2.75 mm | 3.00 mm | 3.50 mm | 4.00 mm |
|---|---|---|---|---|---|---|---|
| 6 mm | GS15006 | GS20006 | GS25006 | GS27506 | GS30006 | GS35006 | GS40006 |
| 10 mm | GS15010 | GS20010 | GS25010 | GS27510 | GS30010 | GS35010 | GS40010 |
| 12 mm | GS15012 | GS20012 | GS25012 | GS27512 | GS30012 | GS35012 | GS40012 |
| 15 mm | GS15015 | GS20015 | GS25015 | GS27515 | GS30015 | GS35015 | GS40015 |
| 20 mm | GS15020 | GS20020 | GS25020 | GS27520 | GS30020 | GS35020 | GS40020 |
| 25 mm | GS15025 | GS20025 | GS25025 | GS27525 | GS30025 | GS35025 | GS40025 |
| 30 mm | GS15030 | GS20030 | GS25030 | GS27530 | GS30030 | GS35030 | GS40030 |
| 35 mm | — | GS20035 | GS25035 | GS27535 | GS30035 | GS35035 | — |
| 40 mm | — | GS20040 | GS25040 | GS27540 | GS30040 | GS35040 | — |
— Not available.
| Pressure (atm) | 1.50 mm | 2.00 mm | 2.50 mm | 2.75 mm | 3.00 mm | 3.50 mm | 4.00 mm |
|---|---|---|---|---|---|---|---|
| 2 | 1.30 | 1.75 | 2.35 | 2.43 | 2.70 | 3.24 | 3.70 |
| 3 | 1.34 | 1.80 | 2.42 | 2.50 | 2.85 | 3.32 | 3.75 |
| 4 | 1.38 | 1.88 | 2.45 | 2.57 | 2.92 | 3.41 | 3.80 |
| 5 | 1.48 | 1.95 | 2.47 | 2.65 | 2.99 | 3.47 | 3.92 |
| 6 (nominal) | 1.54 | 2.01 | 2.50 | 2.75 | 3.04 | 3.56 | 4.03 |
| 7 | 1.56 | 2.04 | 2.52 | 2.87 | 3.10 | 3.62 | 4.05 |
| 8 | 1.60 | 2.09 | 2.56 | 2.89 | 3.17 | 3.70 | 4.10 |
| 9 | 1.62 | 2.12 | 2.61 | 2.92 | 3.22 | 3.76 | 4.14 |
| 10 | 1.64 | 2.14 | 2.62 | 2.96 | 3.30 | 3.83 | 4.20 |
| 11 | 1.69 | 2.15 | 2.64 | 2.99 | 3.34 | 3.86 | 4.22 |
| 12 | 1.71 | 2.16 | 2.67 | 3.03 | 3.38 | 3.92 | 4.28 |
| 13 | 1.75 | 2.18 | 2.70 | 3.07 | 3.42 | 3.98 | 4.32 |
| 14 (rated burst) | 1.79 | 2.20 | 2.73 | 3.11 | 3.45 | 4.04 | 4.34 |
| 15 | 1.83 | 2.24 | 2.75 | 3.15 | 3.48 | 4.07 | 4.40 |
| 16 | 1.86 | 2.25 | 2.78 | 3.20 | 3.55 | 4.15 | 4.45 |
| 18 | 1.88 | 2.29 | 2.82 | 3.28 | 3.65 | 4.20 | 4.50 |
| 20 | 1.90 | 2.31 | 2.90 | 3.30 | 3.69 | 4.24 | 4.55 |
Order codes follow the pattern GN + diameter + length (for example, GN30015 is 3.00 mm × 15 mm).
| Length | 1.50 mm | 2.00 mm | 2.50 mm | 2.75 mm | 3.00 mm | 3.50 mm | 4.00 mm |
|---|---|---|---|---|---|---|---|
| 6 mm | GN15006 | GN20006 | GN25006 | GN27506 | GN30006 | GN35006 | GN40006 |
| 10 mm | GN15010 | GN20010 | GN25010 | GN27510 | GN30010 | GN35010 | GN40010 |
| 12 mm | GN15012 | GN20012 | GN25012 | GN27512 | GN30012 | GN35012 | GN40012 |
| 15 mm | GN15015 | GN20015 | GN25015 | GN27515 | GN30015 | GN35015 | GN40015 |
| 20 mm | GN15020 | GN20020 | GN25020 | GN27520 | GN30020 | GN35020 | GN40020 |
| 25 mm | GN15025 | GN20025 | GN25025 | GN27525 | GN30025 | GN35025 | GN40025 |
| 30 mm | GN15030 | GN20030 | GN25030 | GN27530 | GN30030 | GN35030 | GN40030 |
| 35 mm | — | GN20035 | GN25035 | GN27535 | GN30035 | GN35035 | — |
| 40 mm | — | GN20040 | GN25040 | GN27540 | GN30040 | GN35040 | — |
— Not available.
| Pressure (atm) | 1.50 mm | 2.00 mm | 2.50 mm | 2.75 mm | 3.00 mm | 3.50 mm | 4.00 mm |
|---|---|---|---|---|---|---|---|
| 2 | 1.43 | 1.85 | 2.12 | 2.52 | 2.79 | 3.20 | 3.25 |
| 4 | 1.49 | 1.90 | 2.26 | 2.67 | 2.89 | 3.27 | 3.35 |
| 6 | 1.52 | 1.94 | 2.31 | 2.70 | 2.91 | 3.37 | 3.46 |
| 8 | 1.54 | 1.98 | 2.40 | 2.73 | 2.94 | 3.44 | 3.78 |
| 10 (nominal) | 1.57 | 2.04 | 2.48 | 2.78 | 2.99 | see IFU | 3.98 |
| 12 | 1.60 | 2.09 | 2.54 | 2.85 | 3.03 | 3.54 | 4.08 |
| 14 | 1.62 | 2.12 | 2.56 | 2.86 | 3.06 | 3.56 | 4.13 |
| 16 | 1.65 | 2.15 | 2.59 | 2.88 | 3.10 | 3.58 | 4.17 |
| 18 (rated burst) | 1.68 | 2.17 | 2.62 | 2.91 | 3.15 | 3.61 | 4.20 |
| 20 | 1.71 | 2.20 | 2.66 | 2.93 | 3.18 | 3.65 | 4.25 |
One brochure value (3.50 mm at 10 atm) is not legible; check the IFU.
Order codes follow the pattern GC + diameter + length (for example, GC11010 is 1.10 mm × 10 mm).
| Length | 1.00 mm | 1.10 mm | 1.25 mm |
|---|---|---|---|
| 5 mm | GC10005 | GC11005 | GC12505 |
| 10 mm | GC10010 | GC11010 | GC12510 |
| 12 mm | GC10012 | GC11012 | GC12512 |
| 15 mm | GC10015 | GC11015 | GC12515 |
| Pressure (atm) | 1.00 mm | 1.10 mm | 1.25 mm |
|---|---|---|---|
| 2 | 0.96 | 1.04 | 1.22 |
| 4 | 0.98 | 1.08 | 1.25 |
| 6 (nominal) | 0.98 | 1.11 | 1.27 |
| 8 | 0.99 | 1.11 | 1.30 |
| 10 | 1.01 | 1.12 | 1.33 |
| 12 | 1.01 | 1.13 | 1.36 |
| 14 | 1.02 | 1.15 | 1.38 |
| 16 | 1.02 | 1.18 | 1.40 |
| 18 (rated burst) | 1.02 | 1.21 | 1.42 |
| 20 | 1.03 | 1.26 | 1.45 |
Pulse supplies the main single-use items for a cath lab, so one supplier answers for supply and documents.
| Pulse product | What it does |
|---|---|
| AcuSafe Micro-Access Introducer Kits | Small-needle first puncture of the artery or vein, then a sheath |
| AcuSafe Introducer Kits | Sheath and dilator that keep the vessel open for catheters and wires |
| GuideX Guidewires | Wires that guide sheaths and catheters into place and support exchanges |
| Optima Manifolds | Control contrast injection, flushing and pressure monitoring |
| Glider PTCA balloons (SC, NC, CTO) (this page) | Open the narrowed artery before a stent, and expand the stent fully after |
| Optima Inflation Device Kit | Inflates the balloon to a measured pressure to open the artery and expand the stent |
| Evera, Sirova, EvroSure and MedSure stents | Drug-eluting stents that hold the opened artery open |
| Mamba drug-coated balloon | Delivers sirolimus to the artery wall without leaving a stent behind |
| AcuSafe Blunt Needle | Controlled access for percutaneous drainage (interventional radiology) |
Share the sizes you use and your monthly volume, and request a quote. Ask for the brochure, IFU and certificates with your quote.
Complete the setup
You May Also Need

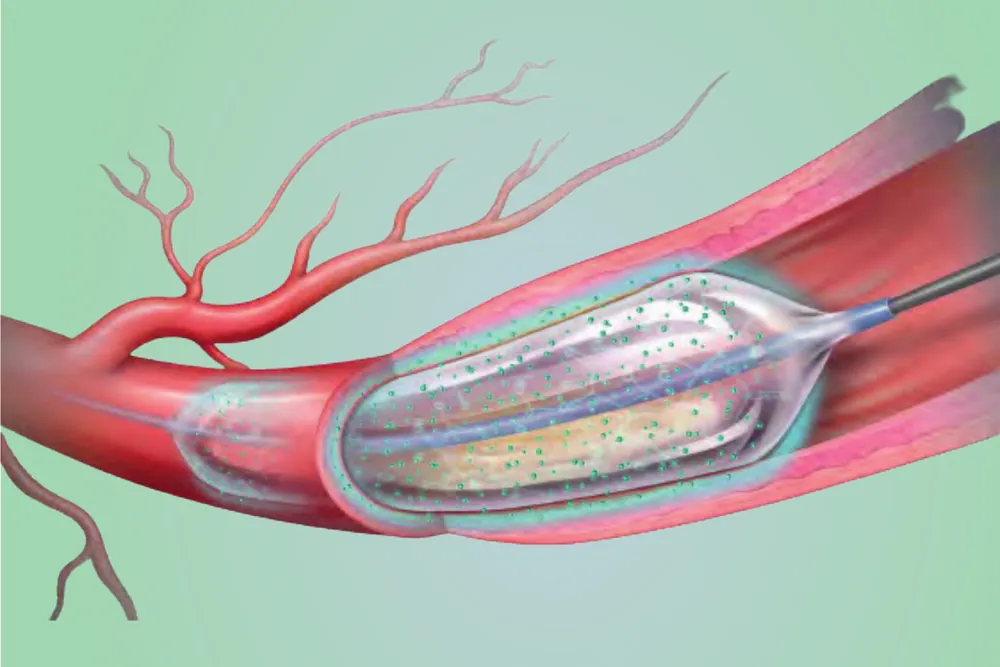

Mamba Drug-Coated BalloonView product →

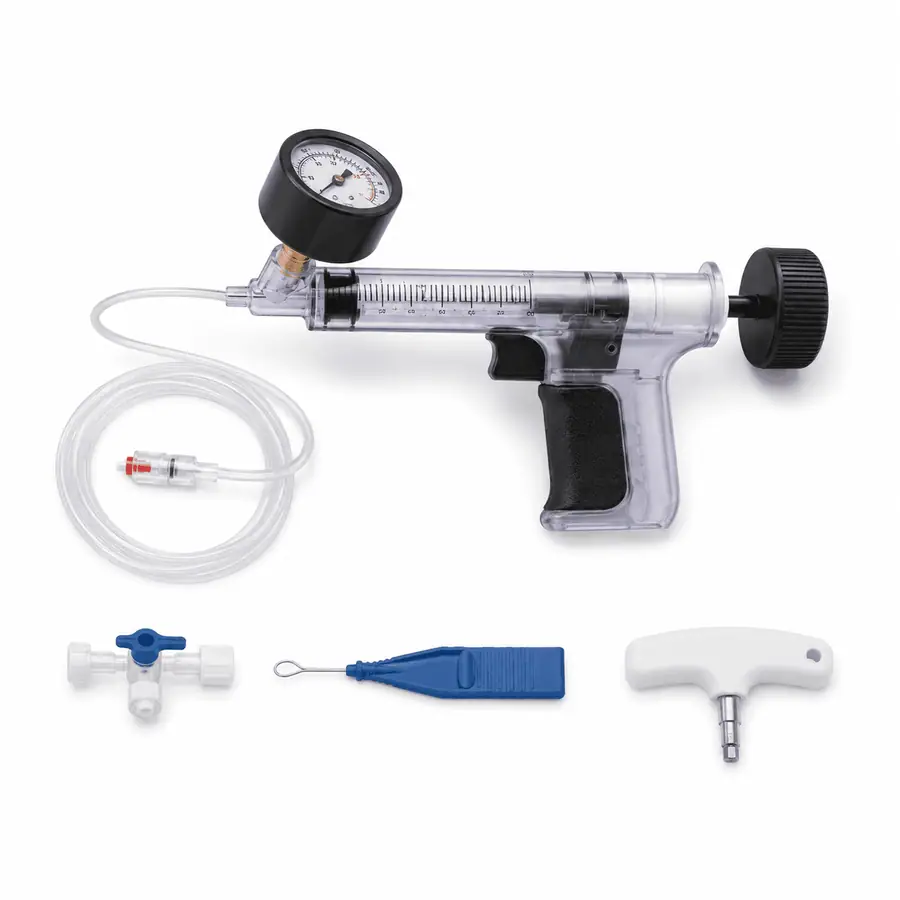

Optima Inflation KitView product →

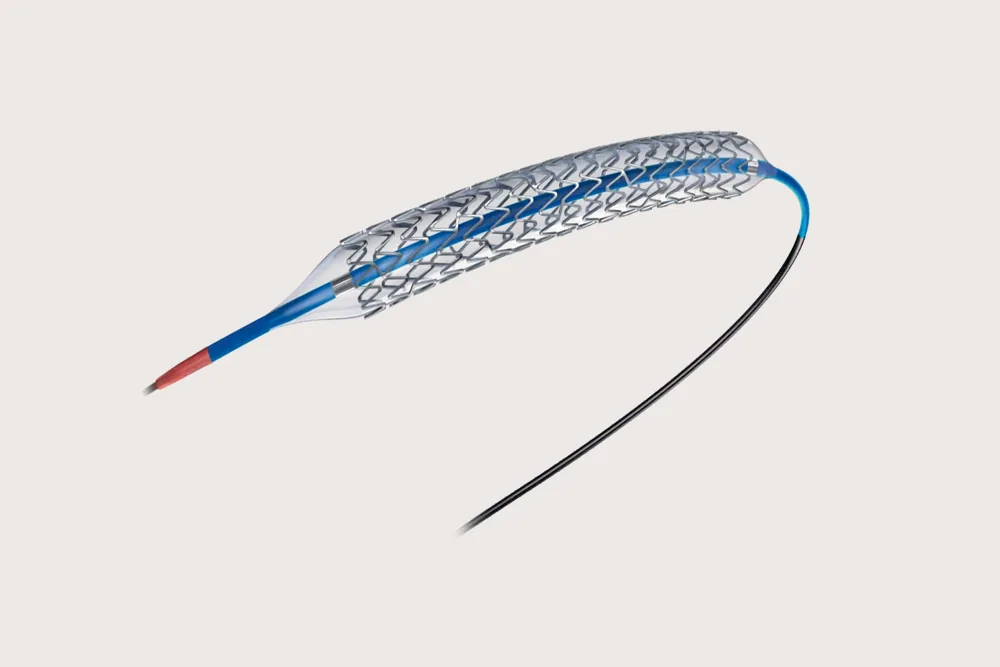

EvroSure Everolimus StentView product →
Buying guides
Related Guides
Balloon Inflation Device Price in India: PTCA Inflator GuideRead guide →
Cardiac Care Device Manufacturer in IndiaRead guide →
Got Questions?
A PTCA balloon is inflated inside a narrowed heart artery during angioplasty to widen it. It is also used before a stent to prepare the artery, and after a stent to expand it fully against the wall.
A semi-compliant (SC) balloon grows a little as pressure rises and is used to open narrowed arteries. A non-compliant (NC) balloon keeps its size at high pressure and is used to expand stents fully. A CTO balloon is very small (1.00 to 1.25 mm) for crossing total or near-total blockages.
Glider SC and NC come in diameters from 1.50 to 4.00 mm and lengths from 6 to 40 mm. Glider CTO comes in 1.00, 1.10 and 1.25 mm diameters and 5 to 15 mm lengths.
Glider SC: nominal 6 atm, rated burst 14 atm. Glider NC: nominal 10 atm, rated burst 18 atm. Glider CTO: nominal 6 atm, rated burst 18 atm.
Glider is a rapid exchange catheter that works with a 5F (0.056 inch) or larger guiding catheter and a guidewire up to 0.014 inch.
The Glider brochure lists ISO 13485:2016 and CE marking (notified body 1035). Ask the Pulse team for the current CDSCO licence and certificates.
Message Pulse on WhatsApp at +91 90711 01108 with your sizes and monthly volume, or download the brochure on this page for full specifications.
