HOME › Hospital Setup › Pulse ICU Bed — Five Functional Manual (Deluxe)
ICU BEDS | Hospital Setup

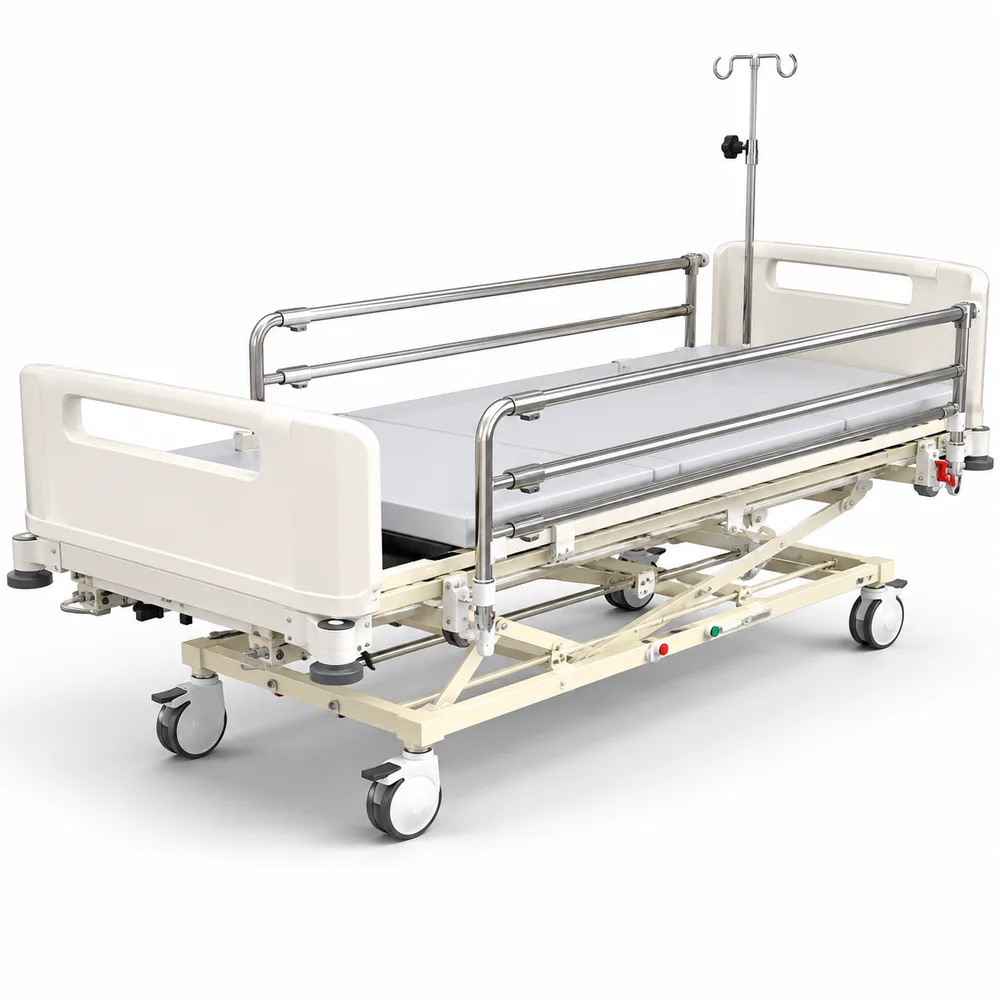

Five-function manual ICU bed with crank mechanism, CRCA pipe frame, ABS safety side railing, and one SS IV rod. Overall size 220×100×60–80 cm.
| Catalogue code | SWM 11003 |
| Type | Five-function manual ICU bed (Deluxe) |
| Positions | Back-rest, knee-rest, Trendelenburg / reverse Trendelenburg, hi-low |
| Operation | Crank mechanism |
| Frame | Strong rectangular CRCA pipe |
| Mattress platform | Uniformly perforated four-section CRCA sheet top |
| Head and foot panels | ABS moulded |
| Side railing | ABS safety side railing |
| Castors | 5-inch special castors, two with brakes |
| IV rod | One SS IV rod |
| Overall size | 220 L x 100 W x 60–80 H cm |
| Finish | Pre-treated and epoxy powder coated |
| SWM 11004 | Five Functional Manual (Eco) — Crank operated, aluminium collapsible side safety railing |
Source: Pulse Hospital Setup catalogue. Sizes and options can be customised for your project; ask our team for full details.
Pulse hospital beds differ mainly in how many positions they offer and how those positions are set. Use this table to match the bed to the ward.
| Bed | Positions | Operation | Code |
|---|---|---|---|
| ICU Bed, 5 Function Electric (Premium) | 5: back, knee, hi-low, Trendelenburg, reverse Trendelenburg | Motorised, separate patient and staff remotes, CPR system | SWM 11000 |
| ICU Bed, 5 Function Electric (Deluxe) | 5: back, knee, hi-low, Trendelenburg, reverse Trendelenburg | Electric actuator | SWM 11001 |
| ICU Bed, 5 Function Manual (Deluxe) (this page) | 5: back, knee, hi-low, Trendelenburg, reverse Trendelenburg | Hand crank, no power needed | SWM 11003 |
| ICU Bed, 3 Function Electric | 3: back, knee, hi-low | Electric actuator | SWM 11005 |
| Fowler Bed Electric | Back-rest and knee-rest | Motor and remote | SWM 11009 |
| Semi Fowler Bed Electric | Back-rest | Motor and remote | SWM 11014 |
Back-rest raises the upper body, which helps patients breathe, eat and sit up.
Knee-rest bends the knees so the patient does not slide down the bed when the back is raised.
Hi-low moves the whole bed up and down: low for safe getting in and out, high so nurses can work without bending.
Trendelenburg tilts the bed head-down, and reverse Trendelenburg tilts it head-up. ICU teams use these tilts for some emergencies and procedures.
Choose this bed where you need all five ICU positions but power is not reliable, or where budget matters most. Every position is set with a hand crank.
Share the quantity, the wards or theatres you are equipping and your city, and request a quote. Typical prices are in our ICU bed price guide. Setting up a full hospital? Pulse plans and equips every department, from 0 to 100.
Setting Up a Whole Hospital?
Pulse sets up hospitals from 0 to 100, not just single products. We help plan what each department needs, supply the equipment and furniture for every area, build modular OTs and medical gas pipelines, install and commission everything, train your staff and look after service once you open. See complete hospital setup or message us on WhatsApp +91 90711 01108.
Got Questions?
A five function manual ICU bed for wards where a crank operated bed is preferred over an electric one, built on a CRCA pipe frame.
By a crank mechanism rather than a motor, with ABS safety side railing and one stainless steel IV rod included.
Yes, it is ISO 13485 certified.
Yes. This is used in both small clinics and large multi-department hospitals across India.
Message us on WhatsApp at +91 90711 01108, or use the Contact Us button on this page.
