Haemodialysis Machines

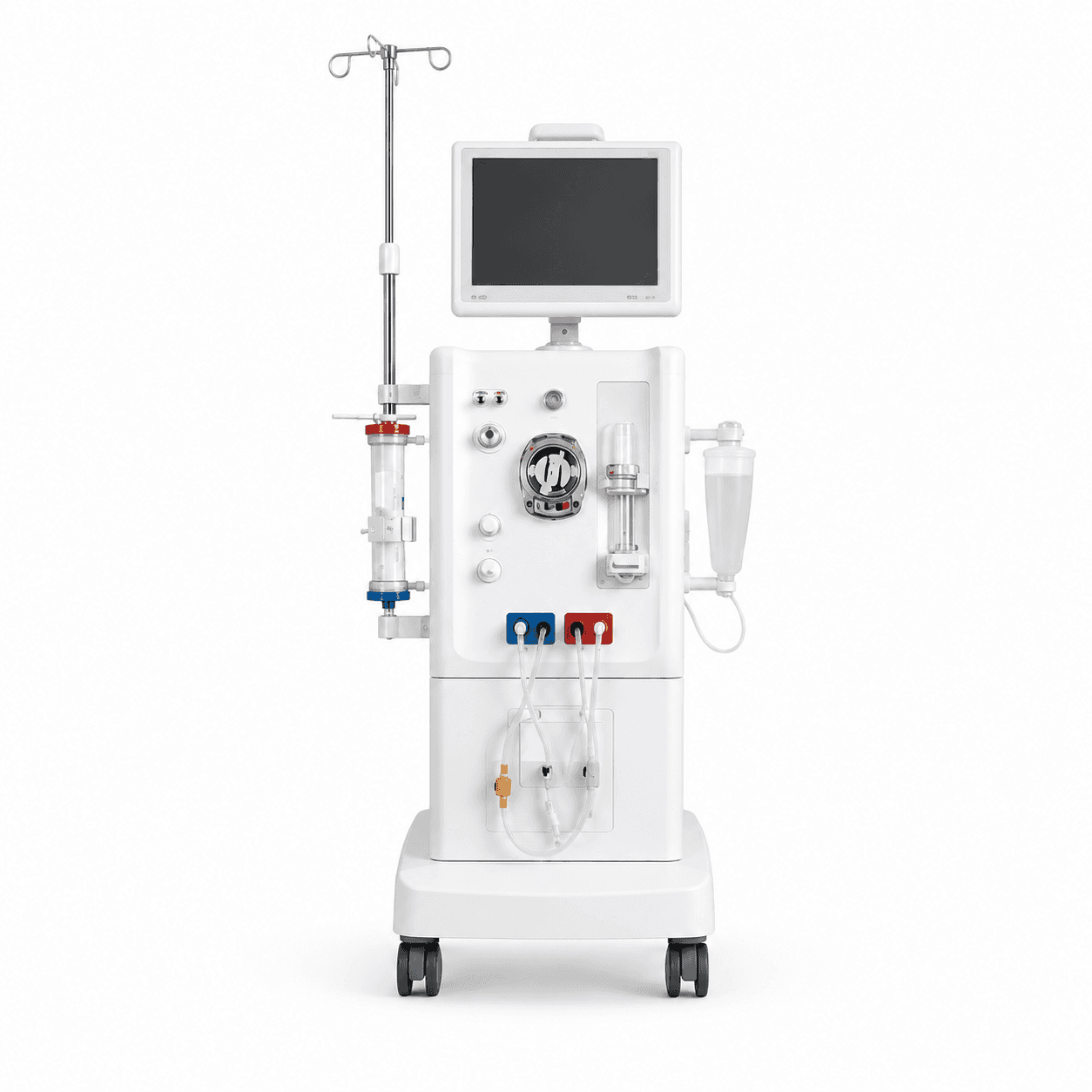

PDM-6000
Precision Haemodialysis System

Designed to deliver safe, accurate, and consistent haemodialysis therapy, the PDM-6000 supports dialysis centers and hospitals with dependable renal replacement therapy performance, optimized workflow efficiency, and superior patient safety.

±1% UF Precision Kt/V Monitoring Auto Priming

Key Features

01 — THERAPY PRECISION

✓Accurate ultrafiltration control with ±1% precision
✓Integrated Kt/V monitoring for therapy adequacy assessment
✓Stable blood and dialysate flow regulation
✓Real-time therapy parameter monitoring

02 — PATIENT SAFETY

✓Air detection and automatic blood pump protection
✓Blood leak detection system
✓Multi-parameter pressure monitoring
✓Automated safety self-testing system
✓Automatic alarm and protection mechanisms

03 — PRECISION DIALYSATE CONDUCTIVITY CONTROL

✓Temperature regulation (35°–39°C)
✓Integrated disinfection system

04 — OPERATIONAL EFFICIENCY

✓Automated priming and disinfection
✓Intuitive interface and preset protocols
✓Reduced setup time
✓Maintenance-optimized system design

Technical Specifications

Voltage	230V AC ±10%
Frequency	50Hz
Max Consumption	2.1kVA
Weight	Approx. 85 kg
Blood Flow Range	0, 50–600 ml/min
Dialysate Flow Range	300–800 ml/min
Dialysate Temperature	35–39°C
Dialysate Conductivity	0–16.0mS/cm (±0.1mS/cm)
Ultrafiltration Rate	0–3600 ml/h (±1% accuracy)
Pressure Monitoring	–400 ~ +400mmHg (±10mmHg, 5mmHg resolution)
Syringe Pump	0, 0.3–10 mL/h; Sizes: 10, 20, 30 mL
Water Inlet Pressure	1–3 bar
Water Inlet Temperature	5–30°C
Battery Backup	30 mins automatic power supply after power off
Disinfection	Integrated hydraulic circuit disinfection system
