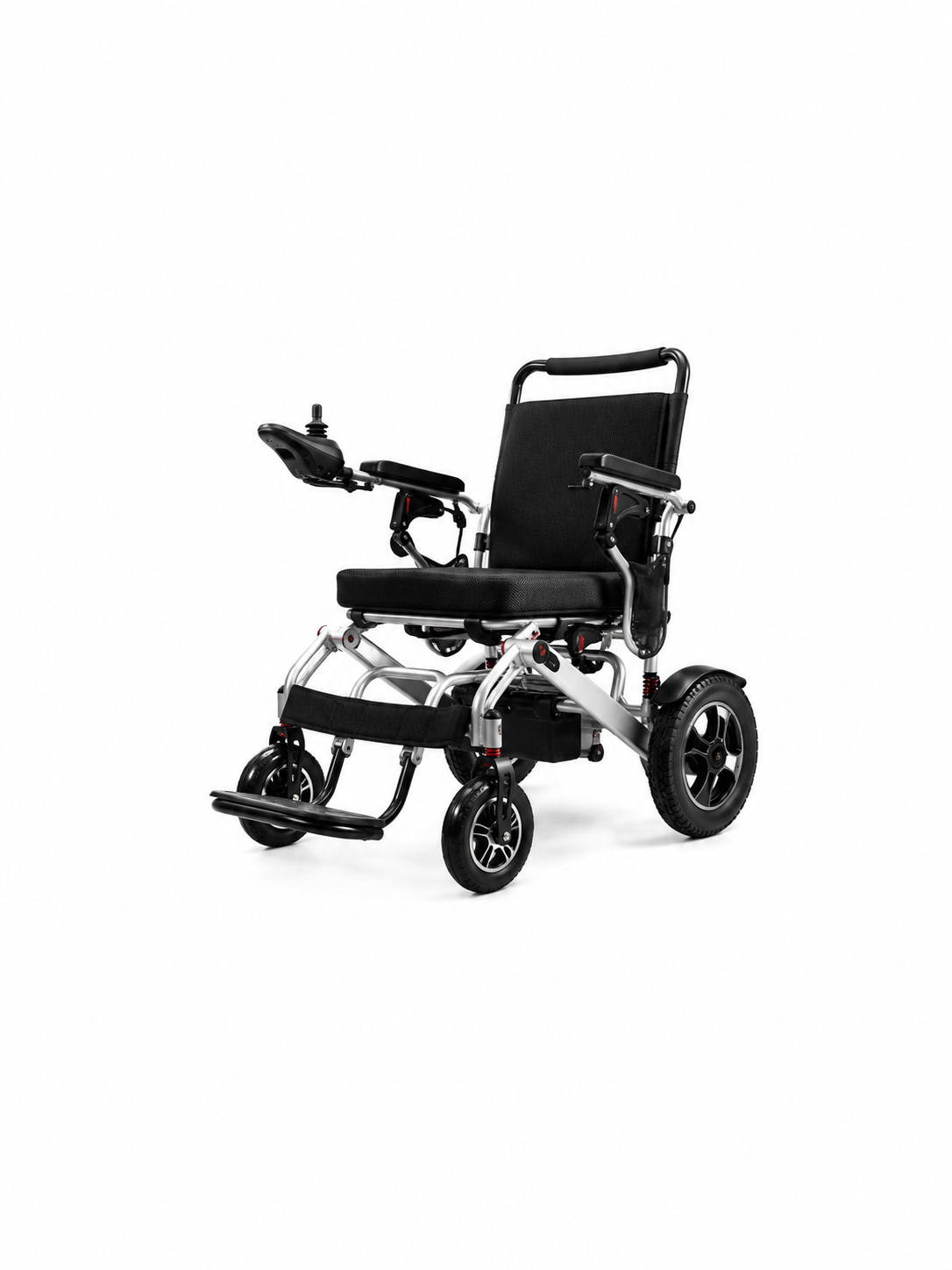

Joylite — Model 9006

Enhanced Joylite model with upgraded battery capacity, improved seat comfort, and intuitive joystick for independent daily mobility and rehabilitation.

Upgraded Battery Comfort Seat Easy Fold

Enquire on WhatsApp Download Brochure

Key Features

Multiple configuration options: WT-100W (Rear-wheel 16"), WT-100WA (Front-wheel 16"), WT-100WB (Rear-wheel 22")
Stepless speed regulation with 4 forward gears and 1 reverse gear
Comprehensive safety: controller overvoltage, motor blocking, insulation, and circuit protection
Foldable frame structure with liftable armrests for convenient patient transfer
Rear anti-rollover safety wheel
Electromagnetic compatibility certified (YY0505 standard)
Designed service life: Battery 1 year, Frame 5 years

Key Specifications

Max User Weight	100 kg
Max Speed / Driving Range	≤ 6 km/h / ≥ 10 km
Braking (Horizontal / Max Safe Slope)	≤ 1.5 m / ≤ 3.6 m (6°)
Slope Holding / Climbing Capacity	9° / ≥ 6°
Stability (Static / Dynamic)	≥ 9° / ≥ 6°
Obstacle Clearance / Trench Width	≥ 40 mm / 100 mm
Min Turning Radius	1200 mm
Motors / Controller	DC 24V, 250W × 2 / 50A
Battery / Power Supply	12Ah / DC 24V
Environmental Limits	Temp: -10°C to +40°C \| Humidity: 25%–95%
