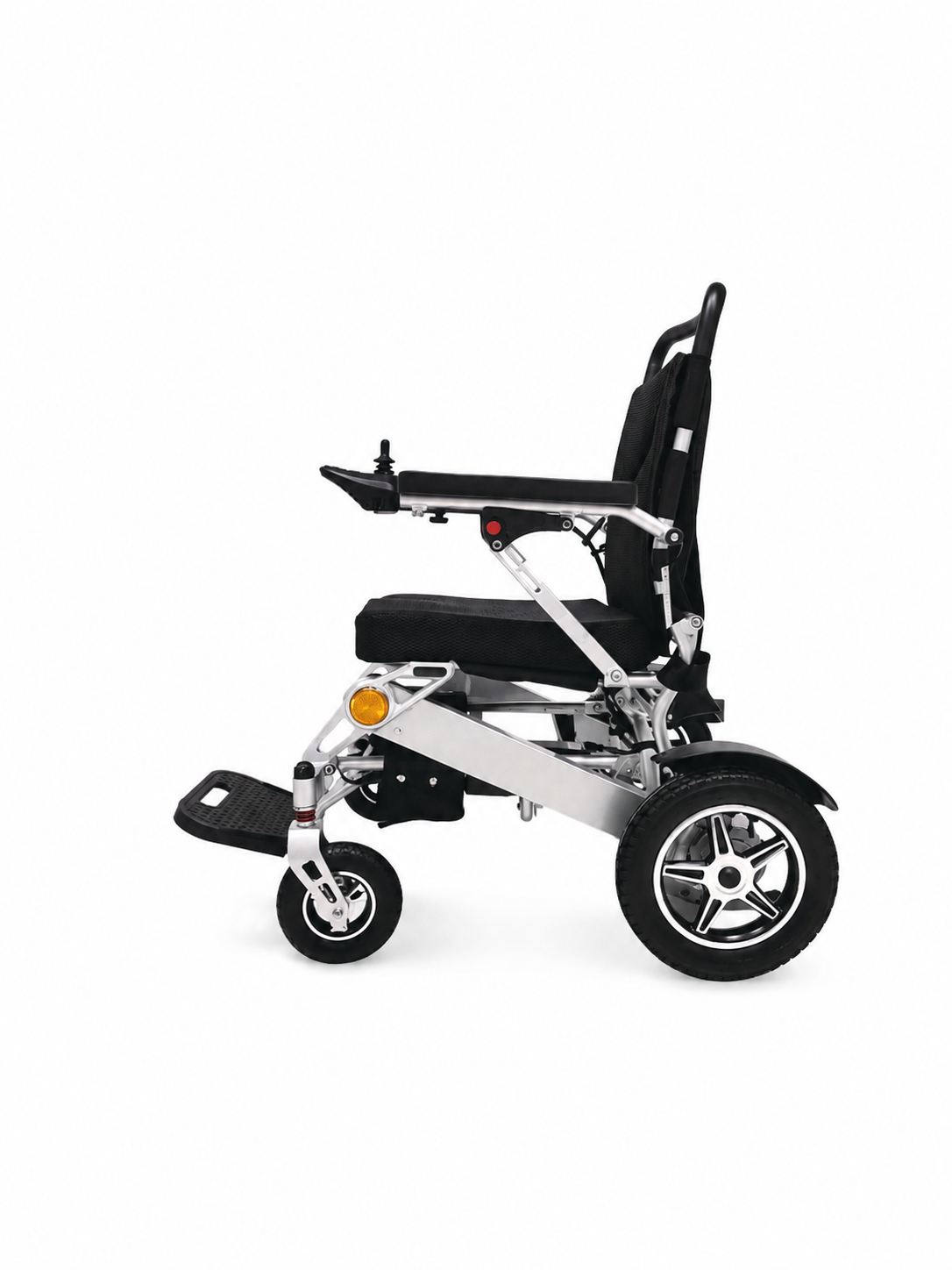

Innovax — Model 6016A

Advanced power wheelchair featuring high-torque motors, anti-tip wheels, and adjustable armrests for enhanced patient safety and comfort.

High-Torque Motor Anti-Tip Wheels Adjustable Armrests

Key Features

Shock-absorbing springs for smooth ride comfort
Safety turn signals (left & right indicators) & rear shopping bag
Foldable frame with space-saving 40 cm folded width
Wireless remote control operation & 360° dynamic joystick with 5-speed gear selection
Energy-saving sleep mode (automatic power-off after 20 minutes of inactivity)
Smooth manual/electric mode conversion & electromagnetic safety brakes
Clear battery level indicator (5-segment LED bar)
Designed service life: 5 years

Expansion Size (LxWxH)	103 cm × 65 cm × 101 cm
Seat Size (WxD)	450 mm × 460 mm
Armrest Height / Backrest Height	300 mm / 555 mm
Net Weight / Load Capacity	approx. 25 kg / 150 kg
Front Wheel / Rear Wheel	8 inches / 12 inches
Battery / Controller Current	Lithium 24V (capacity optional) / 35A
Driving Range / Max Speed	≥ 20 km / 6 km/h
Stability (Static / Dynamic)	≥ 9° / ≥ 6°
Braking / Min Turning Radius	≤ 1.5 m / ≤ 1.2 m
Tires	High stretch rubber
