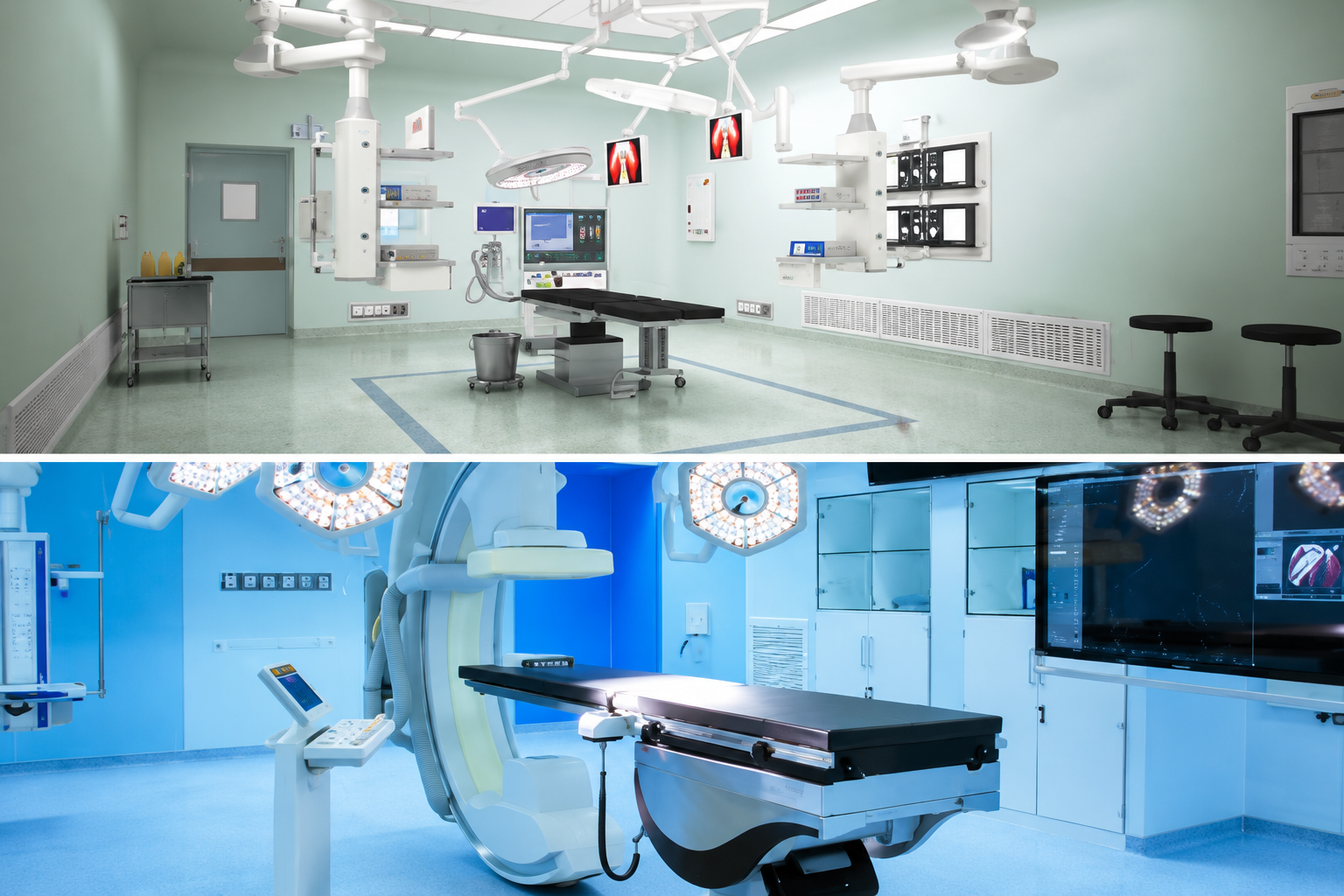

Modular Operation Theatre

A fully integrated, ISO-certified modular operating theatre solution designed for infection control, workflow efficiency, and clinical performance. Built to international OT standards with laminar airflow, hermetic doors, and complete systems integration for any surgical specialty.

ISO-Certified Turnkey OT Construction

Key Features

✓ISO-certified modular OT construction
✓Laminar ceiling with HEPA filtration for infection-free environment
✓Wall and ceiling cladding systems (PVC/HPL/Aluminium)
✓Hermetic sliding and swing doors with vision panels
✓Pass boxes (mechanical and electrical interlock options)
✓Scrub sinks with elbow/sensor operation
✓Surgeon control panels (lighting, temperature, gas)
✓Full HVAC compliance — positive pressure zoning
✓Integrated medical gas outlets at OT head panel
✓LED OT lights mounting provisions
✓Customizable layout for General Surgery, Orthopaedics, Cardiac, Neuro, and more

Technical Specifications

Construction	Modular panel system (flush-finish, zero-joint walls)
Air Changes	Minimum 20 ACH (up to 40 ACH in ultra-clean zones)
Filtration	HEPA H14 (99.995% efficiency)
Pressure	+15 to +25 Pa positive pressure
Temperature Control	18°C – 26°C (±1°C)
Humidity Control	40% – 60% RH
Lighting	500–1,000 lux (general); OT light separately mounted
Standards	NABH, ASHRAE 170, IS 13947, HTM 03-01
