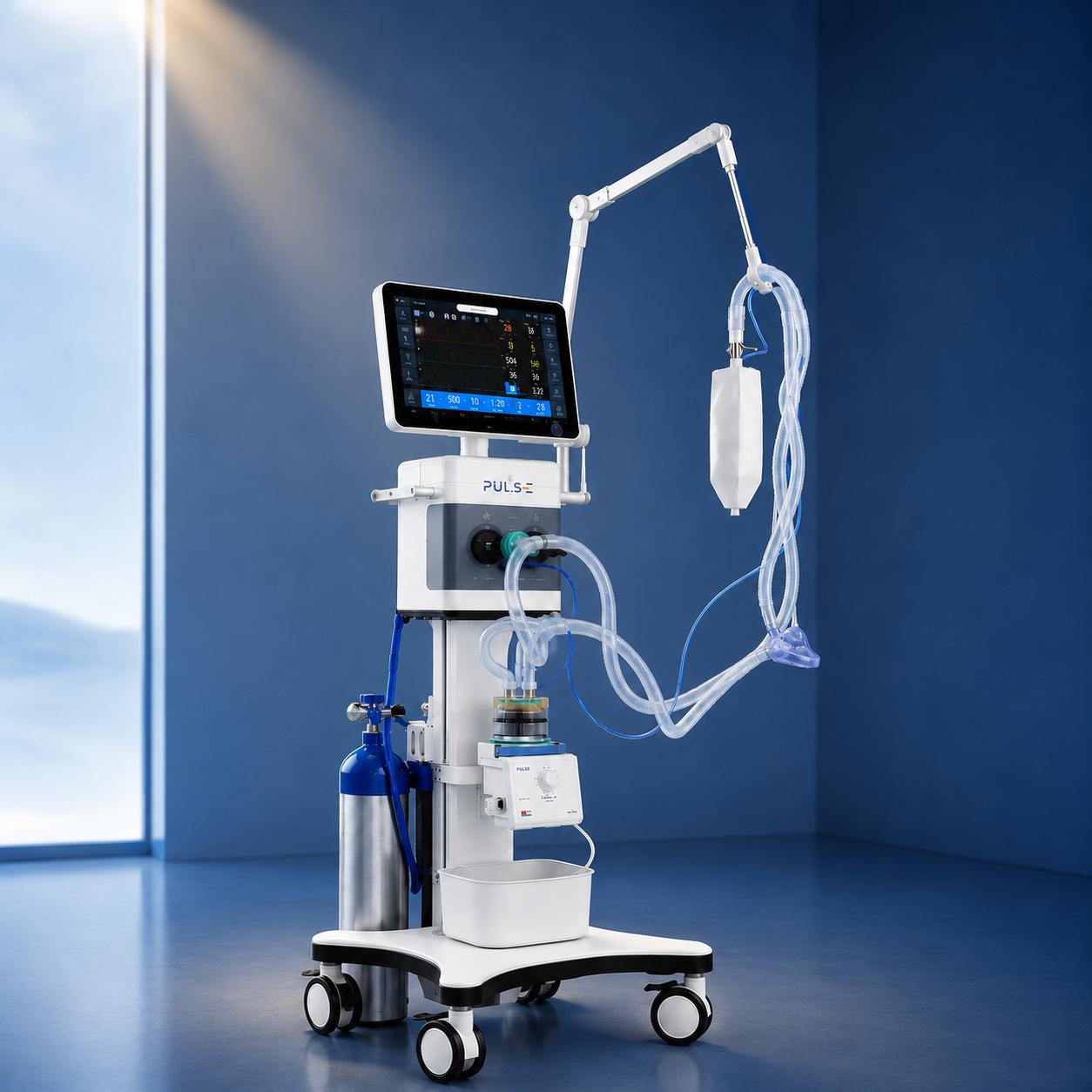

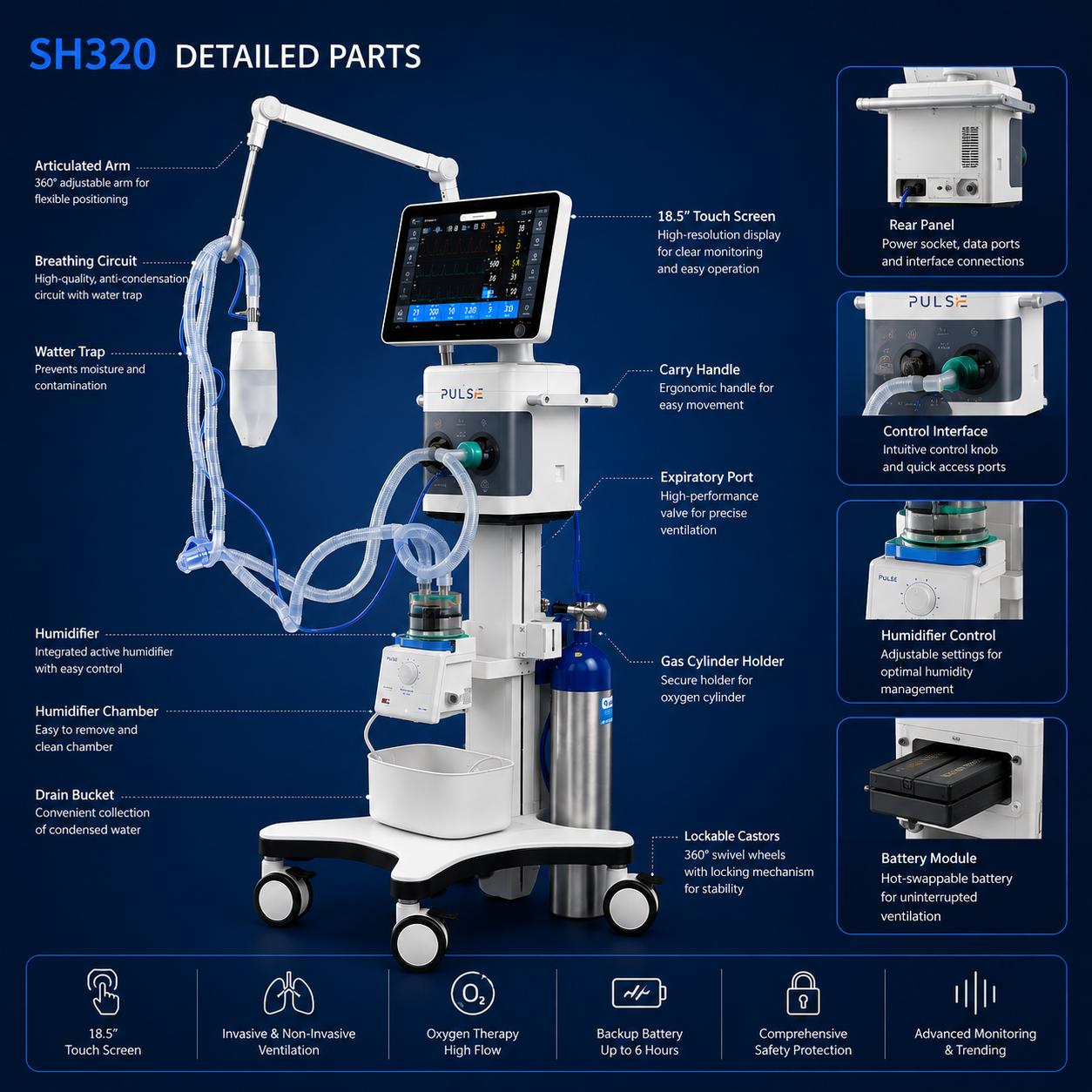

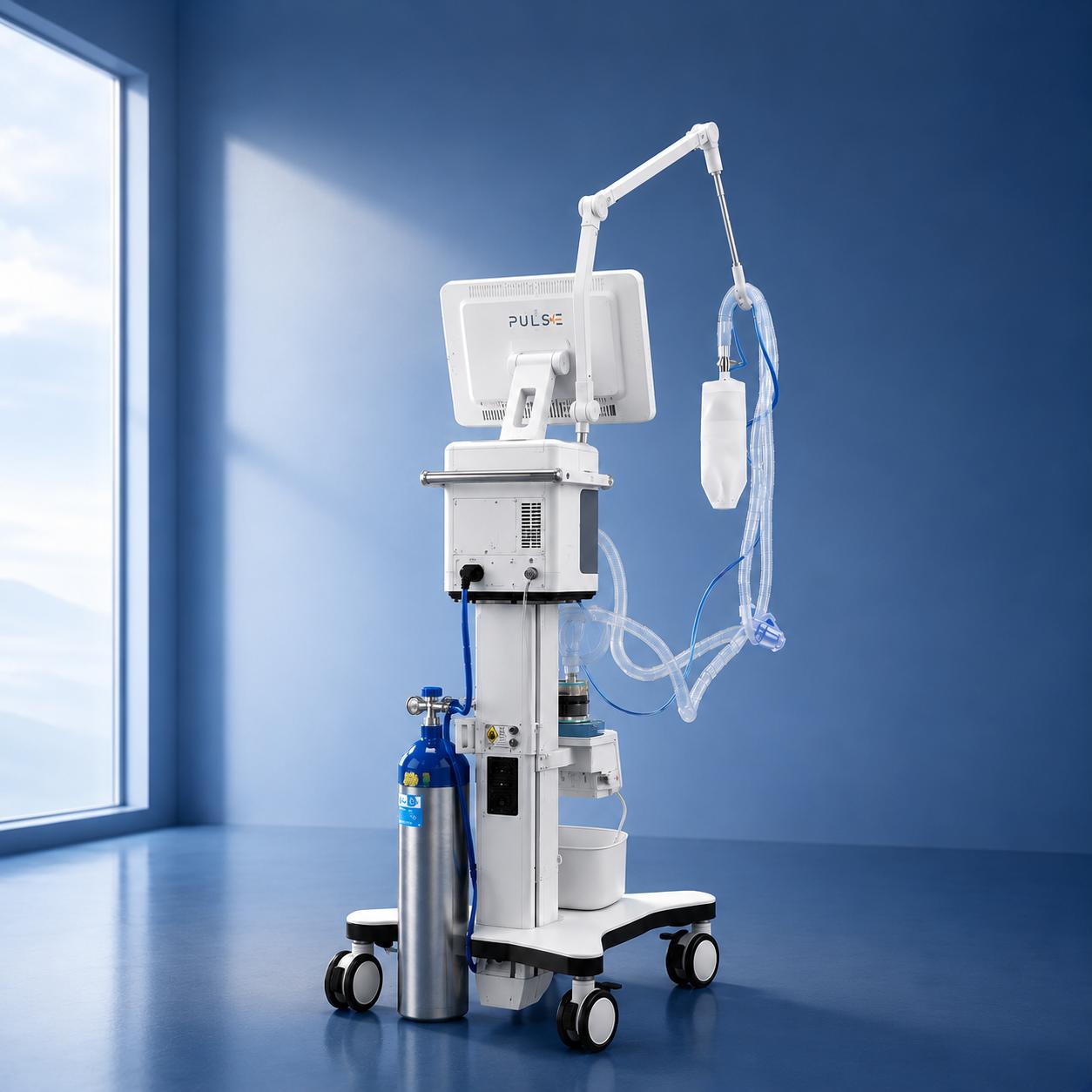

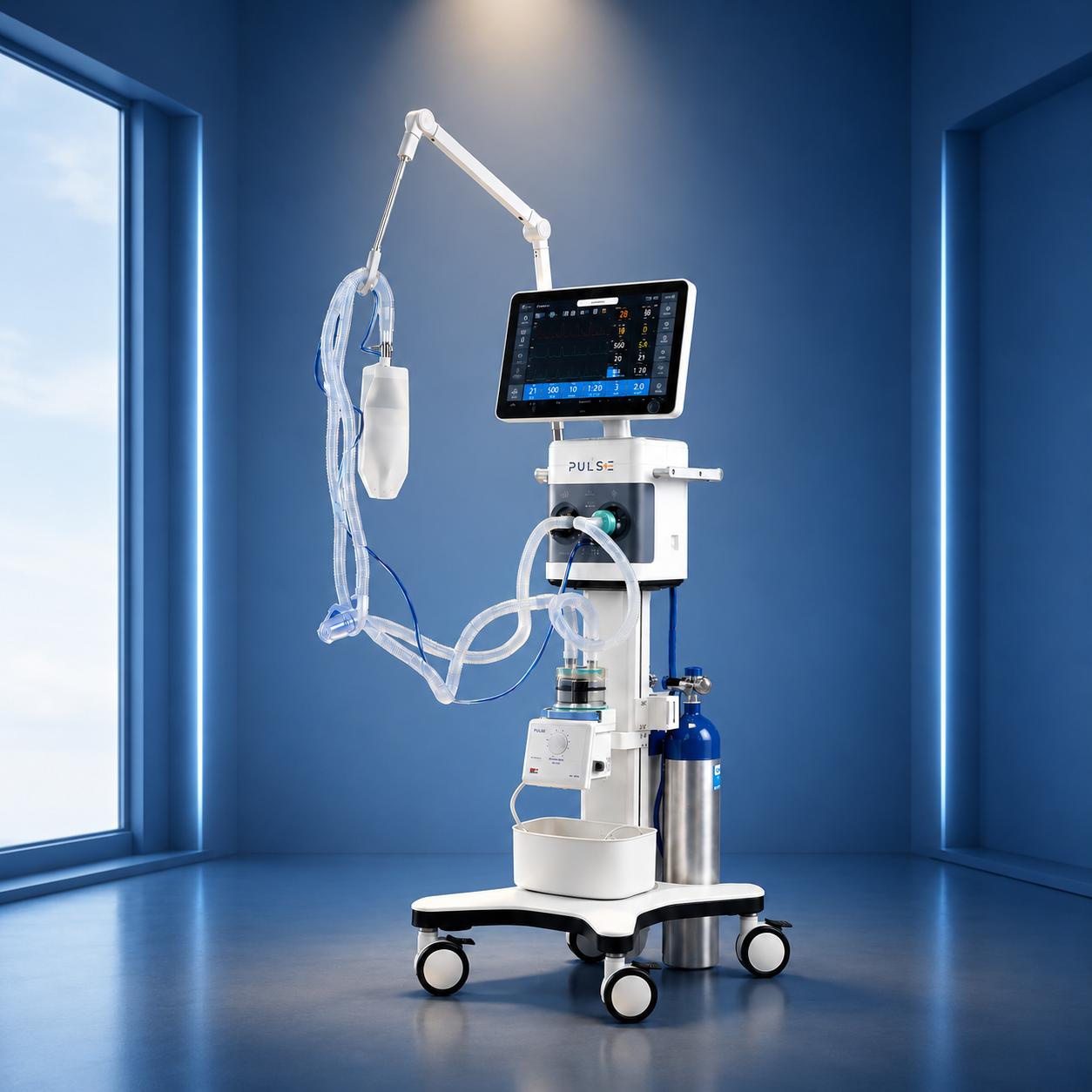

SH320 ICU Ventilator — Front View SH320 ICU Ventilator — Rear View SH320 ICU Ventilator — Side View SH320 ICU Ventilator — Detailed Parts SH320 ICU Ventilator — Profile View

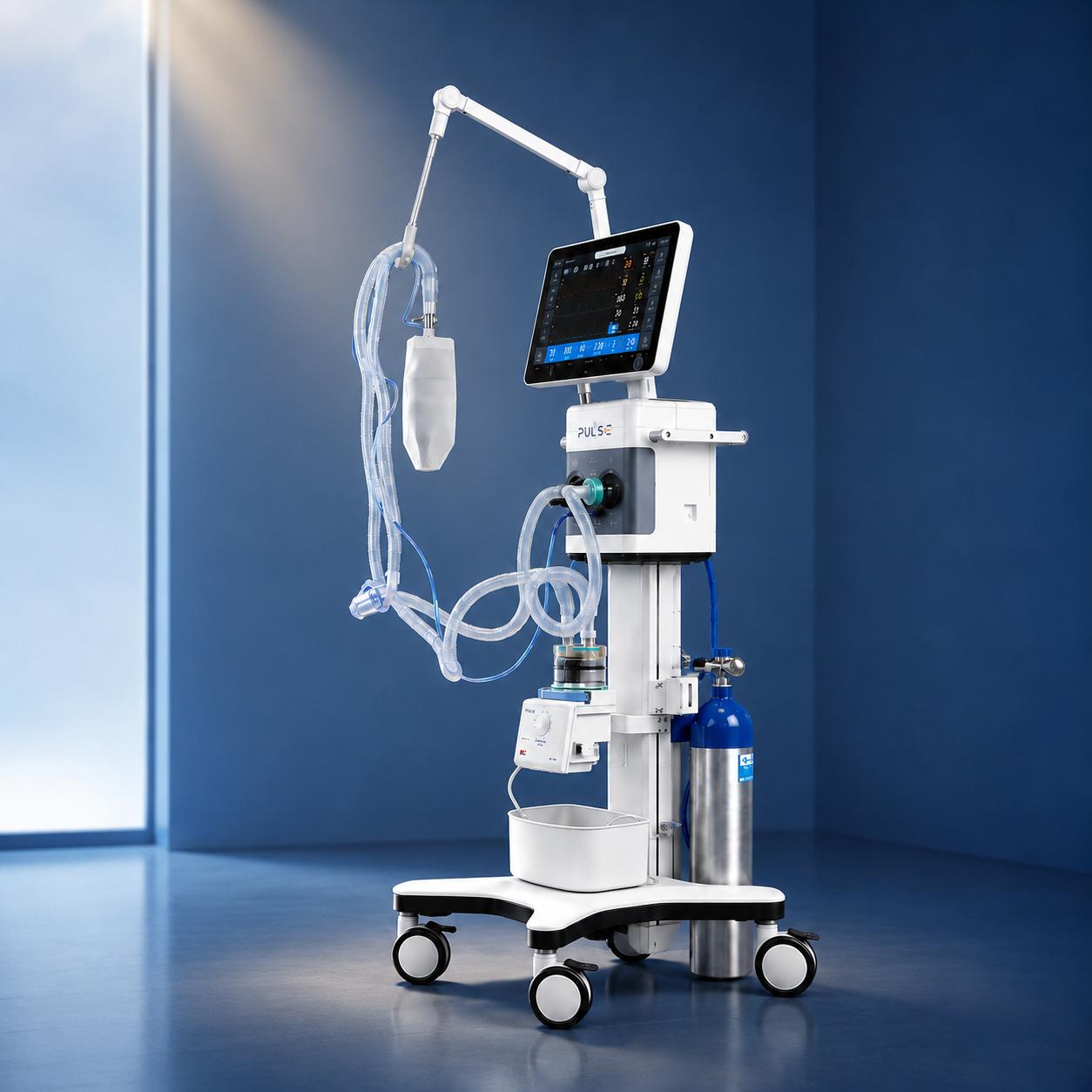

SH320 ICU Ventilator — Front View

ICU Ventilator | Critical Care

SH320 ICU Ventilator

The SH320 is a versatile ICU ventilator for neonates, pediatrics, and adults. It features turbine technology, an 18.5-inch touchscreen, and supports invasive, non-invasive, and high-flow oxygen therapy clinical applications.

Neonate / Pediatric / Adult Turbine Tech 18.5" Touchscreen
Contact Us Download Brochure

Ventilation Modes

Technical Specifications

Controlled Parameters

Tidal volume 2ml–4000ml
Frequency 1–100 times/minute
I:E ratio 10:1–1:10
Psupp 0–80cmH2O
Pinsp 5–80cmH2O
PEEP OFF, 1–50cmH2O
Oxygen concentration 21–100vol%

Monitored Parameters

Tidal volume 0–6000mL
Frequency 0–200 times/minute
I:E ratio 150:1–1:150
Oxygen concentration 18%–100%
Leak% 0%–100%
PEEP 0cmH2O–120cmH2O
Minute ventilation 0–100L/min
