Vital ZEC6

ECG Machine | Critical Care

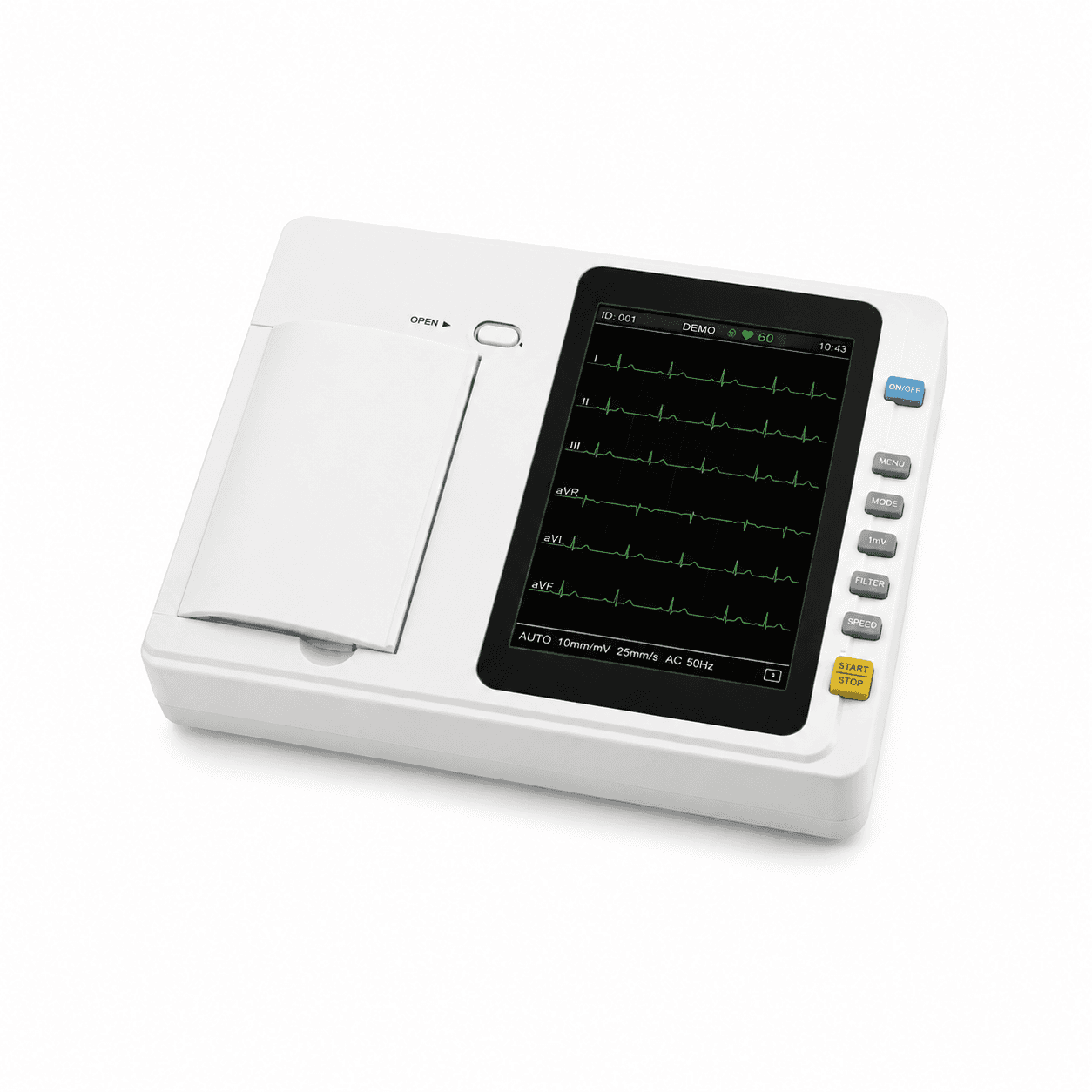

Vital ZEC6
6 Channel ECG Machine

Compact and lightweight 6-channel ECG machine with 7-inch high resolution color touch screen, 12-lead simultaneous acquisition, and built-in rechargeable Li-ion battery.

6 Channel 12-Lead 7" Touch Screen

Contact Us Request Brochure on WhatsApp

Key Features

✓7 inch high resolution color touch screen
✓12-Lead simultaneous acquisition and display
✓ECG automatic measurement and interpretation function
✓Complete digital filters — resisting baseline drift, AC and EMG interference
✓Compact and lightweight
✓Support USB flash disk and micro SD card to extend memory
✓Software upgrade via USB SD card
✓Built-in rechargeable Li-ion battery

Technical Specifications

Lead	Standard 12 leads
Acquisition Mode	Simultaneous 12-leads acquisition
Measurement Range	±5 mVpp
Input Circuit	Floating protection circuit against defibrillator effect
Input Impedance	>50 MΩ
Input Circuit Current	<0.05 uA
Record Mode (Automatic)	3CH = 4+1R, 3CH×3, 3Ch×2+2Ch×3+1R, 6CH×2
Record Mode (Manual)	3CH, 2CH, 3CH+1R, 2CH+1R
Rhythm	Any lead selectable
