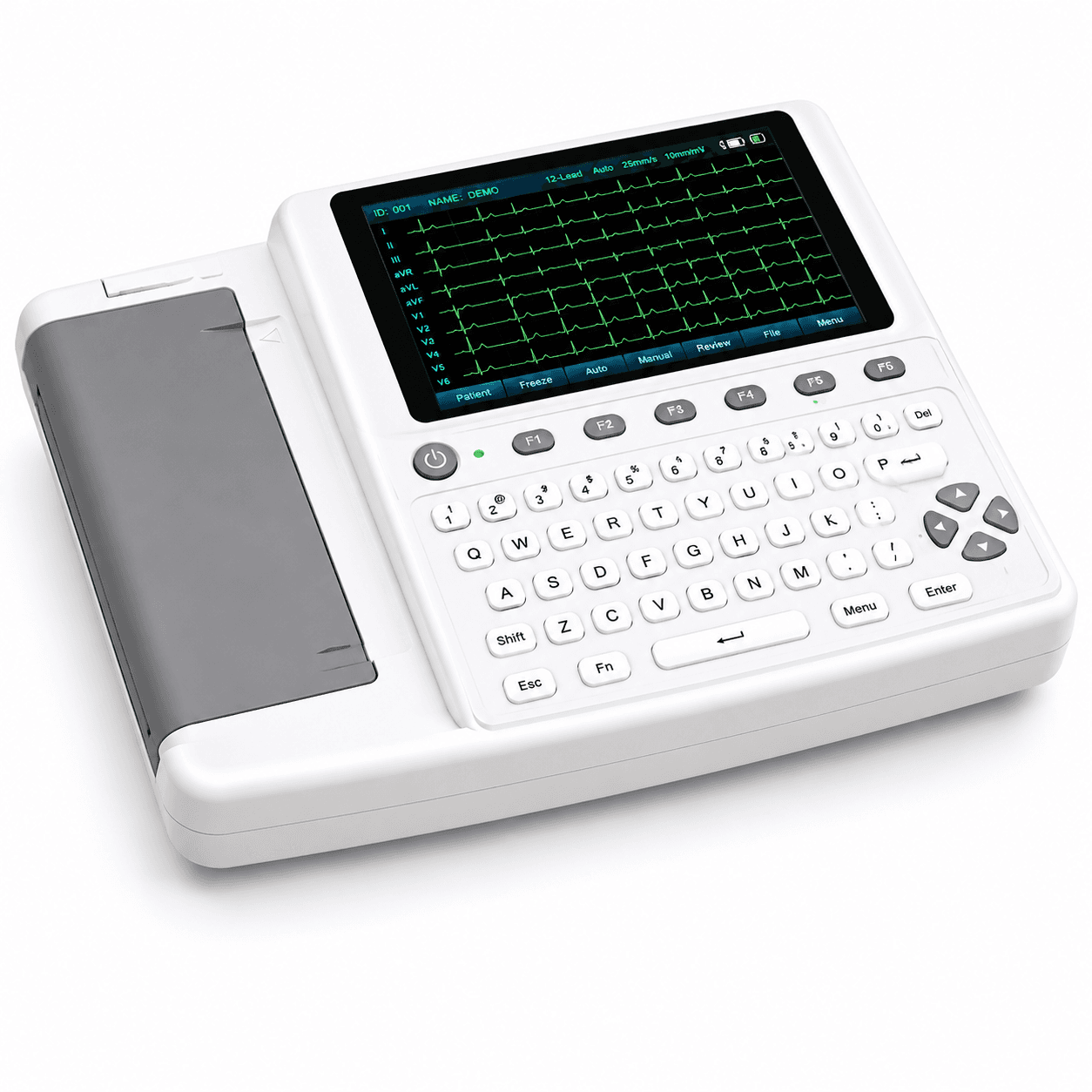

Vital ZEC12
12 Channel ECG Machine

Advanced 12-channel ECG machine with full alphanumeric keyboard, internal storage for up to 1000 cases, high-capacity lithium battery, and ECG data transmission to PC.

12 Channel Alphanumeric Keyboard 1000 Case Storage

Key Features

✓7 inch high resolution color touch screen
✓Full alphanumeric keyboard with shortcut keys
✓Simultaneous 12-lead ECG acquisition and display
✓Automatic ECG measurements and interpretation
✓Internal storage up to 1000 cases for case review and statistics
✓Built-in rechargeable high-capacity lithium battery
✓ECG data transmission to PC via USB
✓ECG reports saved and opened on PC via ECG playback software

Technical Specifications

Lead	Standard 12 leads
Acquisition Mode	Simultaneous 12-leads acquisition
Sampling Rate	1000 Hz
A/D Converter	24 bits
Frequency Response	0.05–160 Hz (–3 dB)
Operation Mode	Manual, Auto, Rhythm, 1 channel 1 minute
AC Filter	50 Hz / 60 Hz
EMG Filter	25 Hz / 35 Hz / 45 Hz / 75 Hz / 100 Hz / 150 Hz
DFT Filter	0.05 Hz / 0.5 Hz
