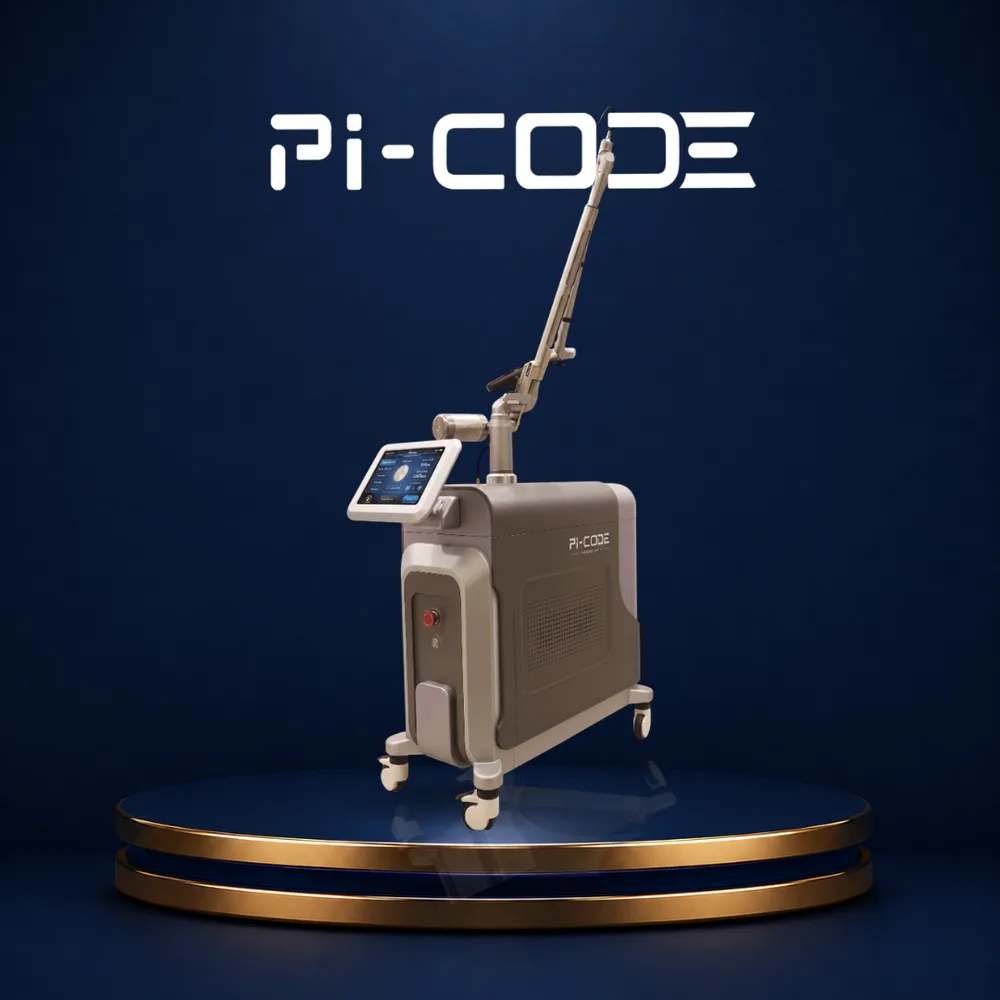

Pi-Code

Pi-Code is an Nd:YAG picosecond laser built for tattoo removal, pigmentation correction, pore tightening, and acne scar treatment. Its dual-pulse PTP (Photoacoustic Twin Pulse) function splits energy into two pulses at 10Hz, achieving results comparable to higher-frequency systems while reducing inflammation and recovery time. A Top-Hat beam mode delivers a flat, evenly distributed energy profile for more uniform results, and a built-in memory function stores up to six treatment presets for faster, more consistent repeat sessions.

Picosecond Pulses Tattoo Removal Double Pulse Mode All Skin Types

Key Features

✓Versatile platform with multiple patient-tailored treatment options
✓Shortest pulse duration enabling high peak power
✓Unique double pulse mode
✓Supreme feature set — suitable for all skin types
✓Double mode long pulse

Technical Specifications

Wavelength	1064nm / 532nm

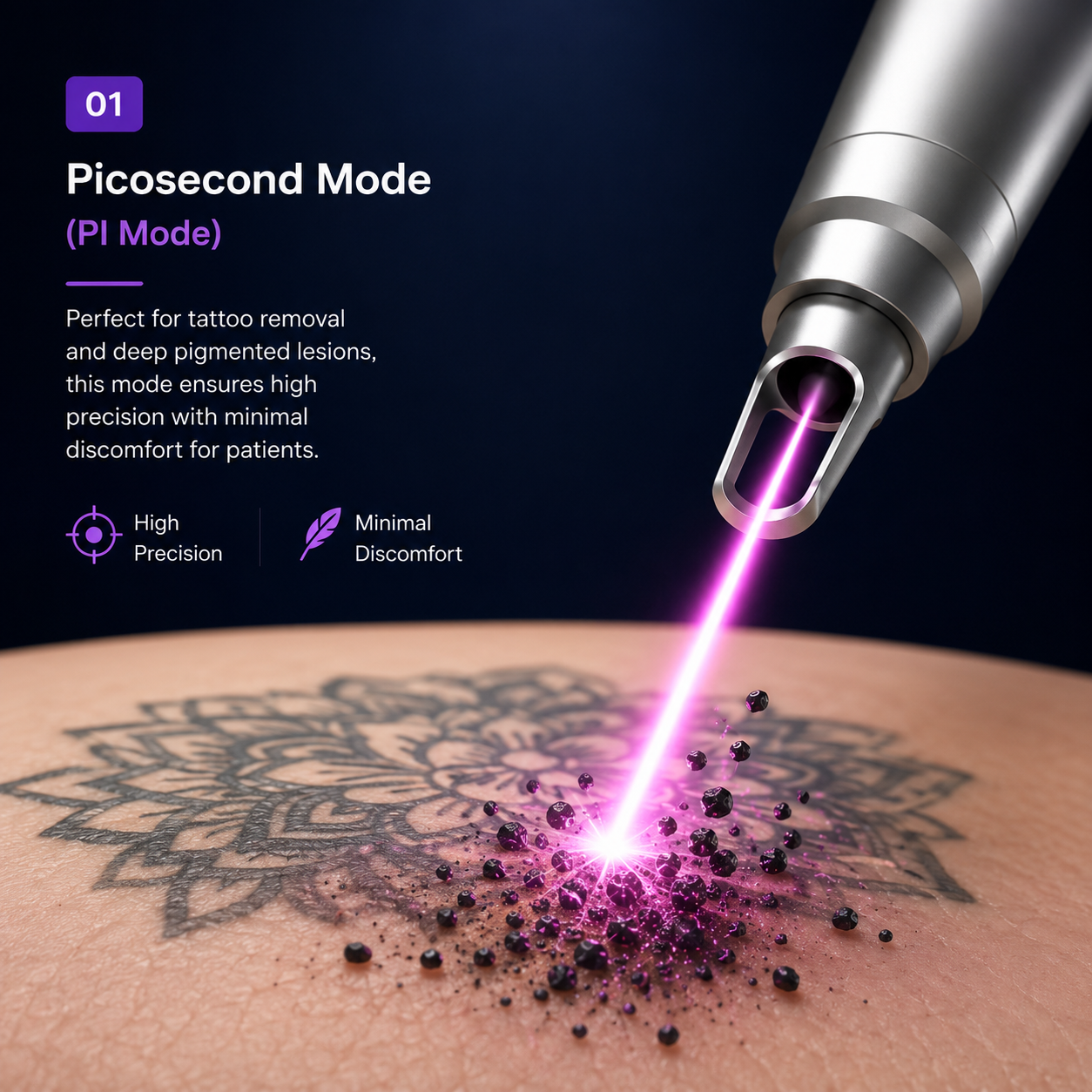

Pulse Width (Picosecond)	2000ps

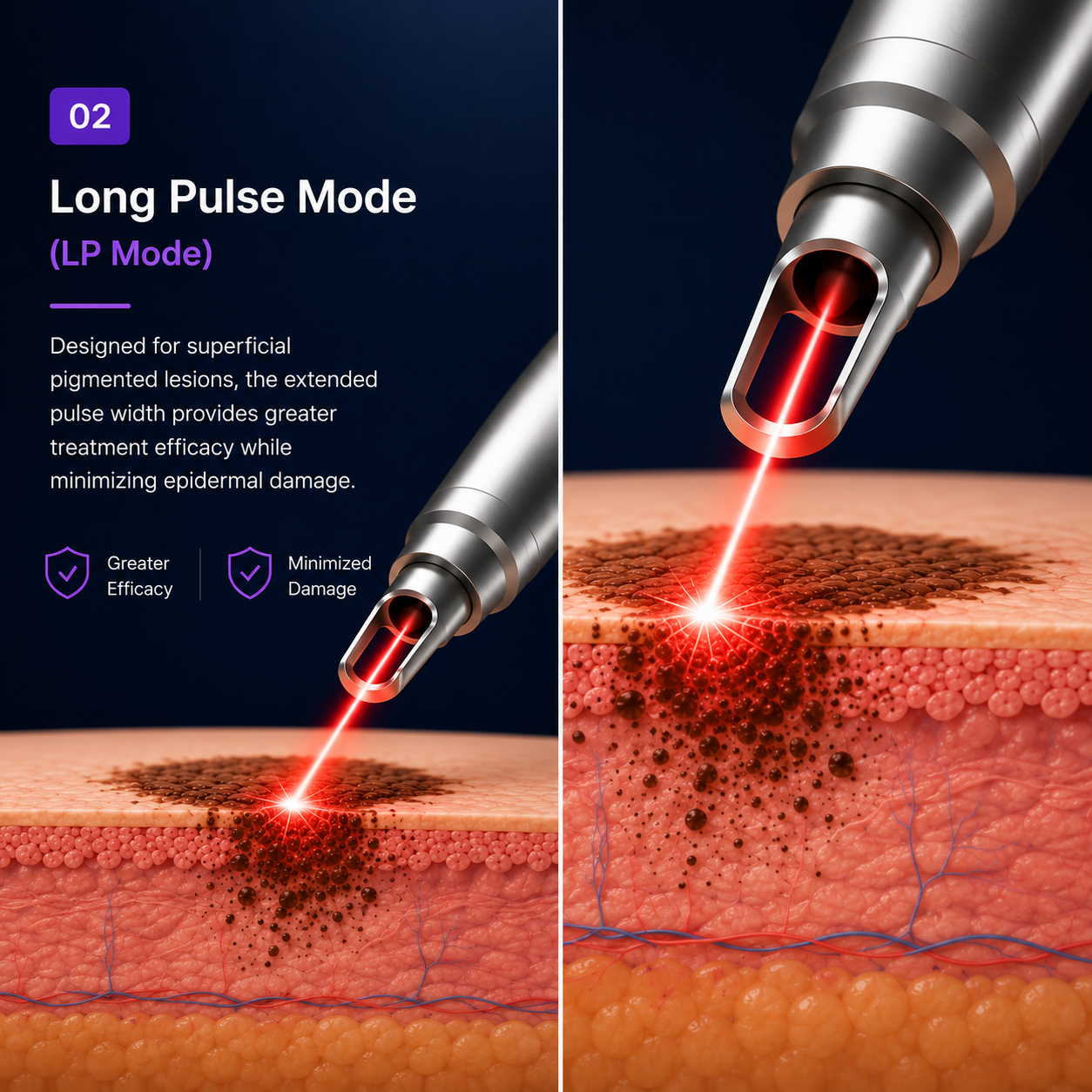

Pulse Width (Long Pulse – SLP)	300µs
Pulse Width (Long Pulse – MLP)	1–5000µs
Max Rep Rate (Picosecond)	Up to 10Hz
Max Rep Rate (Short LP / Long LP)	Short: 10Hz, Long: 1Hz
Spot Size	2–10mm
Max Energy (Double Pulse 1064nm)	100–1600mJ
Max Energy (Double Pulse 532nm)	100–800mJ
Max Energy (SLP / MLP)	SLP: 100–3000mJ, MLP: 1–30J
Light Guide Beam	650nm Red LASER
Power Requirement	220V, 10A, 50/60Hz
Machine Dimensions	680mm × 400mm × 820mm
Net Weight	80Kg

Broad Application Range

Pi-Code covers a wide span of pigmentation conditions in a single platform — tattoos, dark lips, post-inflammatory hyperpigmentation, Nevus of Ota and Ito, melasma, lentigines, freckles, cafe-au-lait spots, birthmarks, and age spots — which reduces the need for multiple pigmentation-specific lasers in one clinic. The gentler dual-pulse delivery also means shorter downtime between sessions, letting practitioners schedule repeat treatments more frequently than with older single-pulse picosecond systems.
