SKIN REJUVENATION | TATTOO REMOVAL | PIGMENTATION

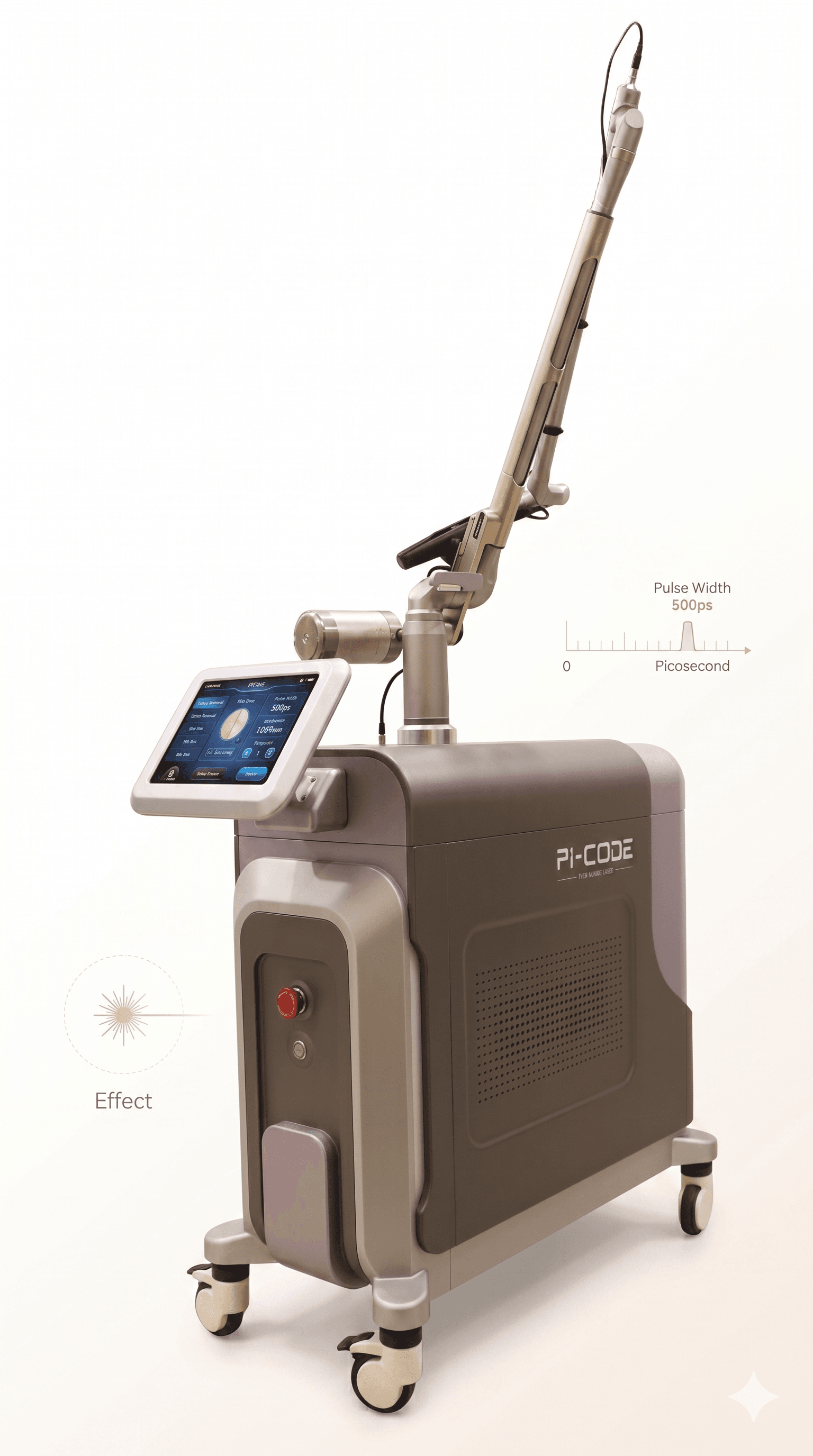

Pi-Code

Pi-Code presents a new era in skin rejuvenation and tattoo removal, offering optimal results for wrinkle reduction, colourful tattoo removal, and pigmented lesions with ultra-short picosecond pulses.

Picosecond Pulses Tattoo Removal Double Pulse Mode All Skin Types

Key Features

✓Versatile platform with multiple patient-tailored treatment options
✓Shortest pulse duration enabling high peak power
✓Unique double pulse mode
✓Supreme feature set — suitable for all skin types
✓Double mode long pulse

Technical Specifications

Wavelength	1064nm / 532nm
Pulse Width (Picosecond)	2000ps
Pulse Width (Long Pulse – SLP)	300µs
Pulse Width (Long Pulse – MLP)	1–5000µs
Max Rep Rate (Picosecond)	Up to 10Hz
Max Rep Rate (Short LP / Long LP)	Short: 10Hz, Long: 1Hz
Spot Size	2–10mm
Max Energy (Double Pulse 1064nm)	100–1600mJ
Max Energy (Double Pulse 532nm)	100–800mJ
Max Energy (SLP / MLP)	SLP: 100–3000mJ, MLP: 1–30J
Light Guide Beam	650nm Red LASER
Power Requirement	220V, 10A, 50/60Hz
Machine Dimensions	680mm × 400mm × 820mm
Net Weight	80Kg
