RF MICRONEEDLE | COLLAGEN REMODELING

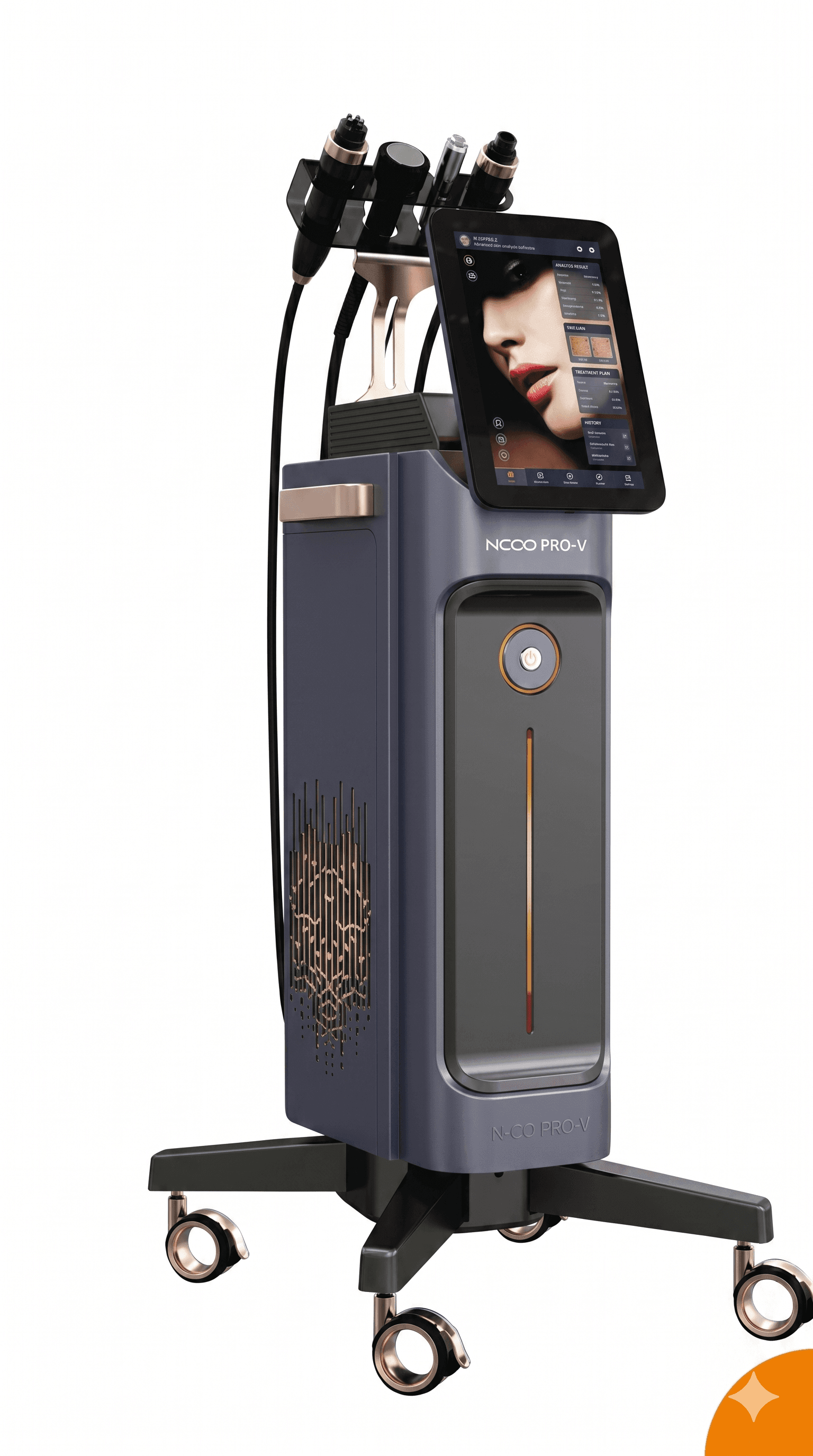

Nodd

Nodd Fractional RF Microneedle delivers RF energy directly to the epidermis or dermis to stimulate and remodel collagen, supporting both invasive micro-needling and non-invasive RF matrix modes on a single platform.

Gold-Plated Needles Mono & Bipolar 0.4–4mm Depth Dual Handle

Key Features

✓Stepping motor type
✓Gold-plated needling
✓Mono-polar & bi-polar modes
✓All body treatment
✓Dual handle: Fractional RF + Micro Needle RF

Technical Specifications

Power	Max 50 watts
Handle	Fractional RF handle / Micro needle RF handle
Frequency	2MHz
Energy	1–10 Level
Pulse Duration	10–900ms
Needle Depths	0.4–4mm Adjustable
Pressure Level	1–4
Working Mode	Single / Auto
Mode	Mono & Bipolar
Cooling	1–3 Level
Invasive Tips	M-18, M-25, M-49, M-81
Non-Invasive Tips	F-3×3, F-5×5, F-9×9
